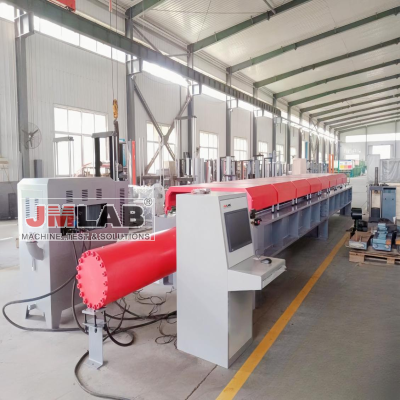

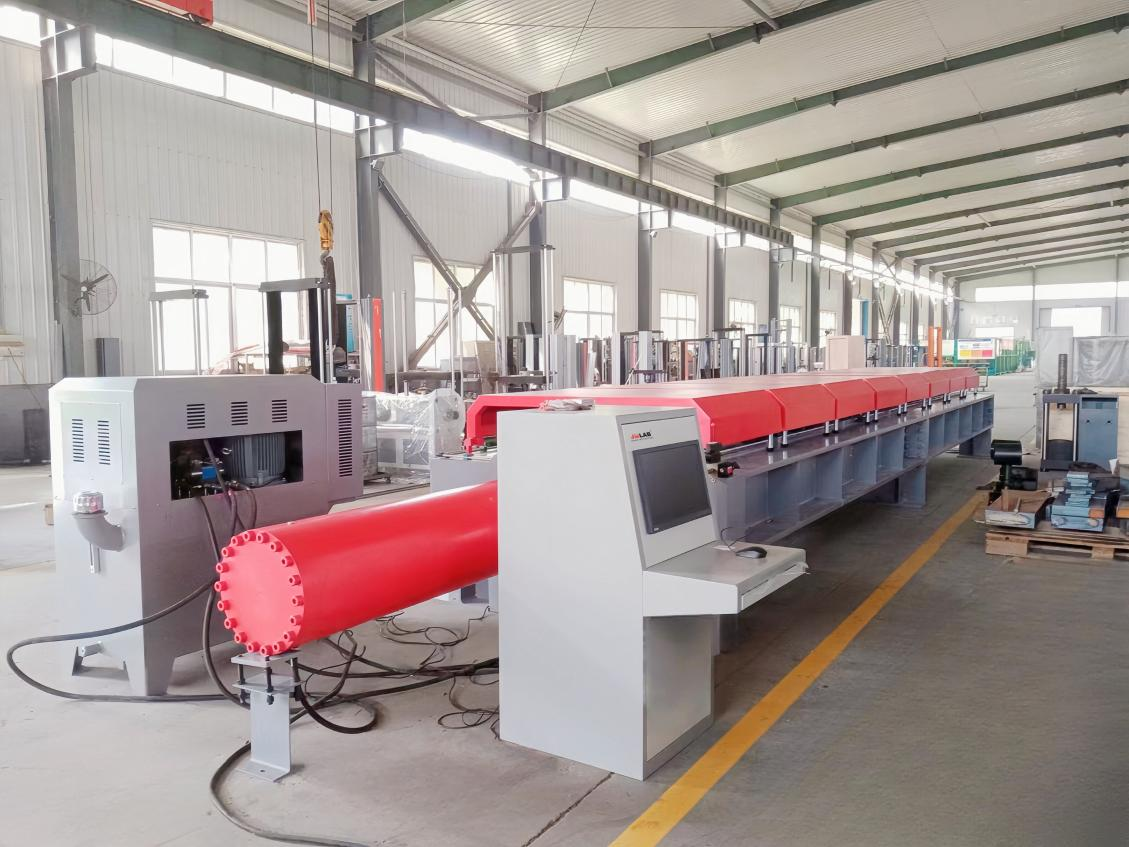

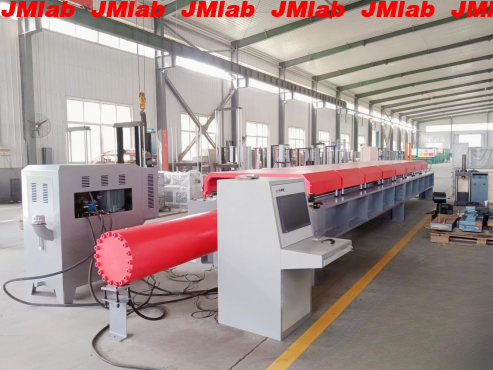

WAL-3000D Electro-hydraulic Servo Horizontal Tensile Testing Machine

WAL-3000D Electro-hydraulic Servo Horizontal Tensile Testing Machine

WAL-3000D microcomputer-controlled electro-hydraulic servo horizontal tensile testing machine is a structural testing device specially developed for scientific research institutions, testing units, industrial and mining enterprises and major universities. It is mainly used for static load performance test of steel strand/single strand steel wire, wire rope tension test, lifting belt tension test, safety rope tension test, power hardware destruction test, etc.

2.Safety protection measures:

2.1 Mechanical protection measures

2.1.1 Cylinder limit protection

2.1.2 Hydraulic overload overflow protection

2.1.3 Test force overload protection

2.1.4 Test break automatic shutdown protection

2.1.5 Test end automatic shutdown protection

2.1.6 Phase sequence protection

2.1.7 Overcurrent protection

2.2 Hydraulic station protection

2.2.1 Oil temperature control (automatic shutdown for oil overheating)

2.2.2 Oil filter blockage alarm

2.2.3 Liquid level alarm

3.Test standards:

ISO, ASTM, HGT, EN, GB/T, JB，API etc.

Specifications

Main functional features of the measurement and control software:

Test main interface

 Curve and data analysis

This measurement and control software has the characteristics of beautiful interface, powerful functions, and easy operation. It fully supports multiple languages under win7/8/10/11 operating systems and can be switched at any time.
