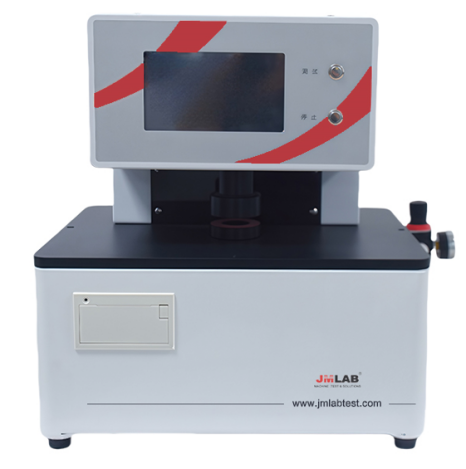

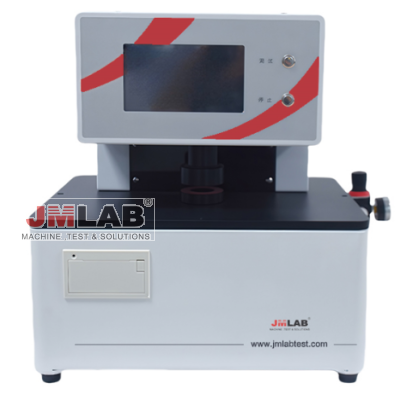

JM-B1P Battery Separator Air Permeability Tester

Product Introduction

The computer-controlled battery separator air permeability tester is a fully automatic instrument designed to test the air permeability of battery separators, conforming to international standards such as GB/T36363-2018 "Polyolefin Separators for Lithium-ion Batteries" and ISO 5636 and SJT 1071.9. It is primarily used to test the air permeability of separators and various membrane materials.

Features

1. Core Configuration: Selected high-end imported electronic components provide solid support for testing accuracy and operational stability with superior quality, ensuring that every test data is accurate and reliable.

2. Intelligent Software: Equipped with a self-developed dedicated software system, it combines ease of operation with high testing efficiency, significantly reducing testing time and comprehensively surpassing imported air permeability meters in overall performance; it has a built-in intelligent pass/fail judgment module, which can automatically identify test results during routine testing and accurately determine whether they meet the standard requirements.

3. Automatic clamping: Equipped with an intelligent automatic clamping system, the clamping pressure can be flexibly adjusted, effectively expanding the range of samples that can be tested and meeting diverse testing needs.

Technical features

Measurement units: s/100ml um/(pa .s) ml/min

Measurement range: 10-10000s/100ml

Resolution: 0.1s

Volume resolution: 0.001ml

Standard differential pressure: 1.21 kPa (adjustable)

Pressure adjustment range: 0-3 kPa (automatically adjusts according to the set value)

Effective test area: 6.45 cm²

Differential pressure adjustment method: Automatic

Pressure display accuracy: High pressure 0.01 kPa, Low pressure: 0.1 Pa

Control method: 7-inch touchscreen (computer control system optional)

Software: Anni Testing Instruments Test Control Software System V1.0

Results repeatability: ≤1%

Sample clamping method: Automatic

Sample clamping pressure: 0-0.4 MPa

Data communication interface (optional): USB/Ethernet port/wireless transmission

Test modes: Standard mode (100ml) Quick mode (volume adjustable)

Result determination function: Yes

Quick mode test time: 5-10 seconds (time may vary slightly depending on the material's breathability).

Power supply voltage: 220V 50Hz

Configuration

Main unit, touch screen , Φ6 mm polyurethane tube , mini printer

Optional: Computer software
