Features
1. The instrument is compact and portable, allowing you to measure haze and transmittance anytime, anywhere.

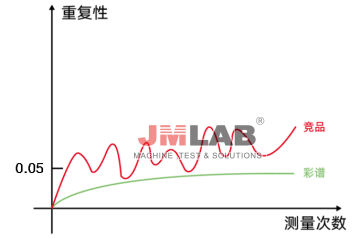

2. High precision, resolution 0.01; high stability, repeatability ≤0.05.
3. Dual guarantee of long-term instrument stability

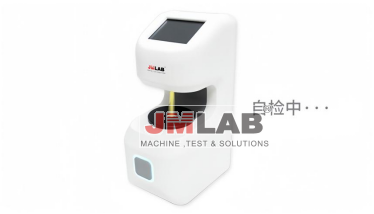

4. Perform regular self-tests while the instrument is in standby mode.

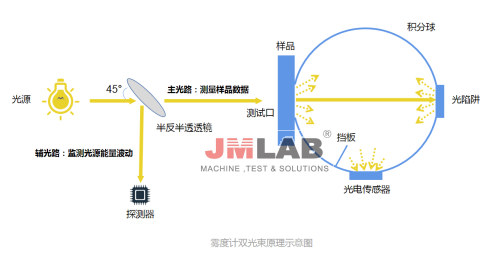

5. Dual optical path design

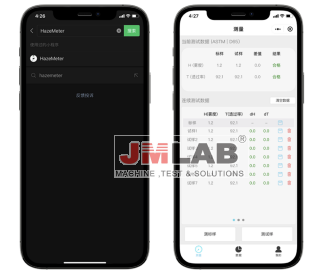

6. Supports connection to the "HazeMeter" mobile app; data follows the account and is stored in the cloud, ensuring no data loss.
7. Supports two measurement apertures to meet the measurement needs of various sample sizes (other sizes can be customized).
8. Meets the following test standards: GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, JIS K 7136
Meets the requirements for haze and transmittance measurement under CIE-A, CIE-C, and CIE-D65 standard lighting sources.
It uses a 2.8-inch touchscreen for operation.

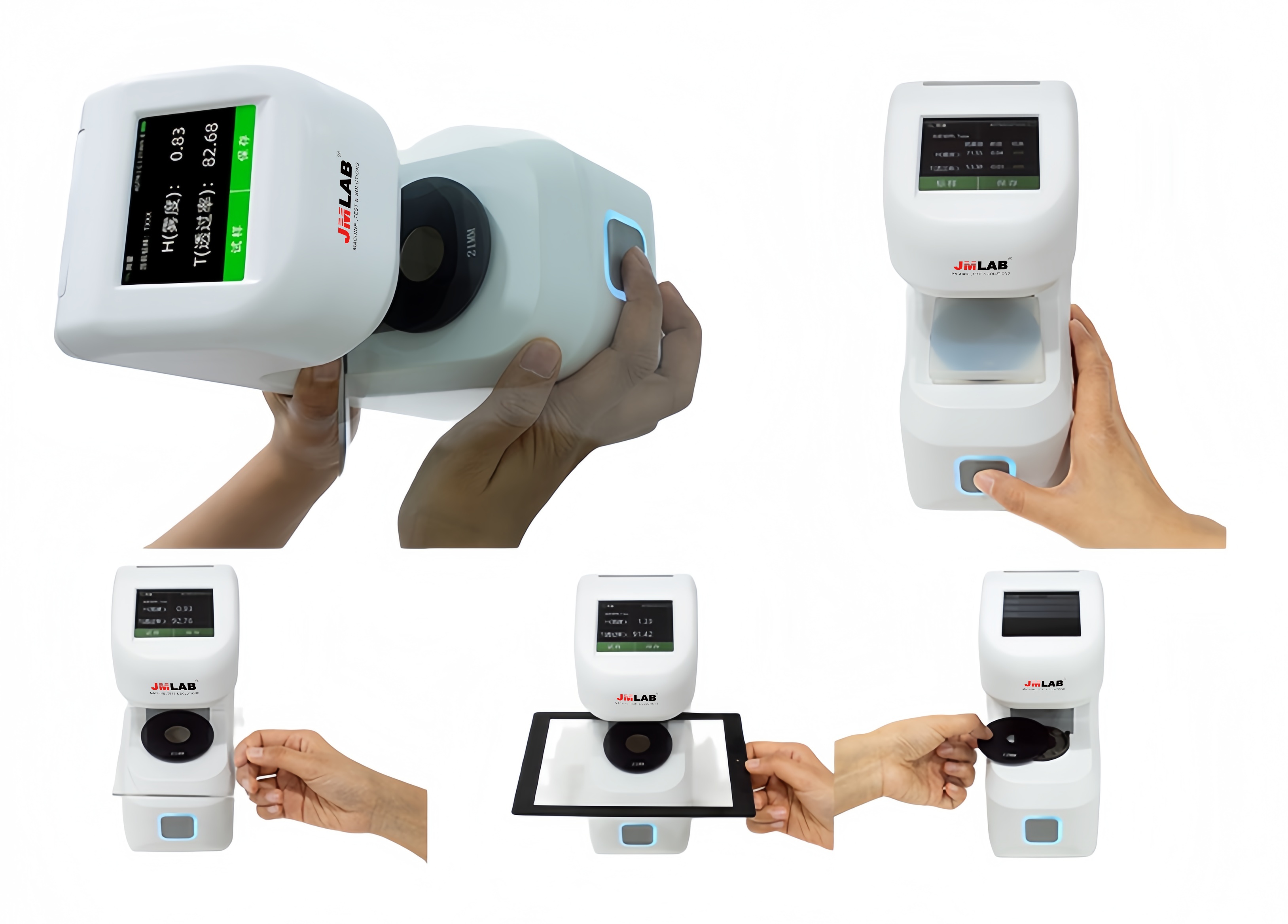

9. Powered by a lithium battery, it makes mobile measurement more convenient for samples that are difficult to sample, such as large glass pieces.
Technical features
model | JM-12HZ |
light source | CIE-A, CIE-C, CIE-D65 |
Follow the standards | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
Measurement parameters | Haze and transmittance under both ASTM and ISO standards |
Spectral response | CIE spectral function Y/V(λ) |
Optical path structure | 0/d |
Measuring aperture | 21mm, 15mm |
range | 0-100% |
resolution | 0.01% |
Repeatability | 0.05 |
Sample size | Thickness ≤ 40mm |
show | 2.8-inch touchscreen |
Store data | Massive storage |
interface | USB interface |
power supply | Lithium battery powered |
Operating temperature | 5~40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation. |
Storage temperature | -20℃ to 45℃, relative humidity 80% or lower (at 35℃), no water vapor condensation. |
volume | Length x Width x Height: 133mm x 99mm x 224mm |
weight | 1.25kg |
Optional | Custom diameter plates |
Application areas and measurement scenarios
