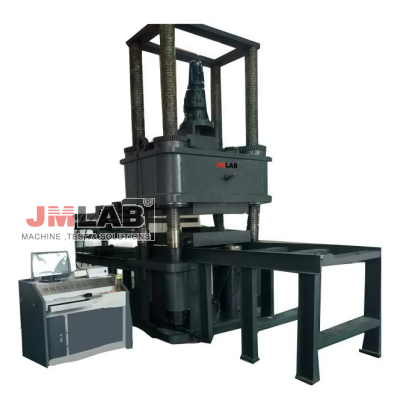

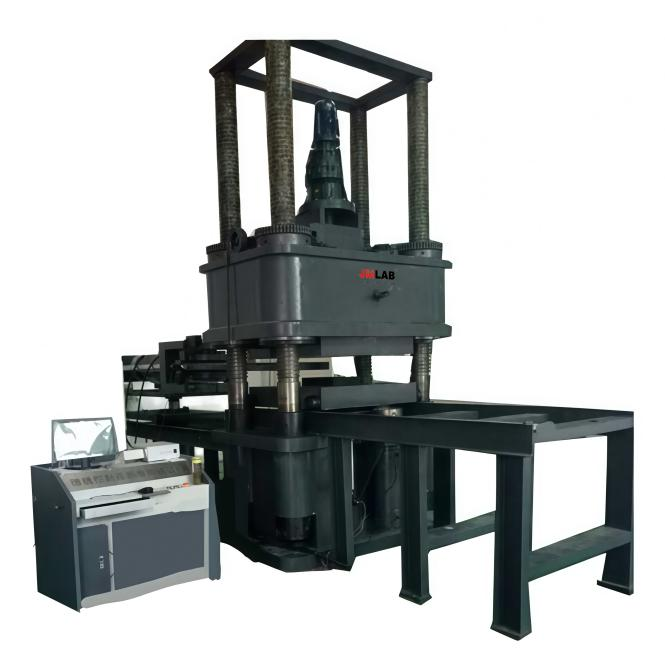

Product Introduction
This product is mainly used for testing and inspecting the mechanical properties, damping performance, and large deformation of rubber bearings, including vibration isolation rubber bearings, plate rubber bearings, pot bearings, and spherical bearings, used in highways, railways, bridges, and buildings. It can perform vertical bearing capacity tests, friction coefficient tests, torque tests, compressive modulus of elasticity tests, shear modulus of elasticity tests, ultimate compressive strength tests, friction coefficient tests, and tests on axial compression deformation and radial deformation under rated load. It also performs tests on compressive modulus of elasticity, shear modulus of elasticity, shear bonding performance, shear aging resistance, friction coefficient, and ultimate compressive strength.
Product Application Scope
This product is mainly used for testing and inspecting the mechanical properties, damping performance, and large deformation of rubber bearings, including vibration isolation rubber bearings, plate rubber bearings, pot bearings, and spherical bearings, used in highways, railways, bridges, and buildings. It can perform vertical bearing capacity tests, friction coefficient tests, torque tests, compressive modulus of elasticity tests, shear modulus of elasticity tests, ultimate compressive strength tests, friction coefficient tests, and tests on axial compression deformation and radial deformation under rated load. It also performs tests on compressive modulus of elasticity, shear modulus of elasticity, shear bonding performance, shear aging resistance, friction coefficient, and ultimate compressive strength.
This product employs microcomputer-controlled multi-stage hydraulic loading, ensuring smooth continuous loading, multi-stage test force maintenance, automatic data acquisition and storage, curve plotting, and automatic test report printing. The computer controls the test process in real-time, displays the test force and test curves, and is simple, reliable, and easy to operate. It also utilizes high-precision force sensors for force measurement, high-precision displacement sensors for displacement measurement, and high-performance servo valve components, ensuring stable and reliable overall performance.
Implementation Standards
GB/T 2611-2007 General Technical Requirements for Testing Machines
GB/T 16826-2008 Electro-hydraulic Servo Universal Testing Machine
TB/T 1893-2006 "Rail Plate Bearings for Railway Bridges"
TB/T 2331-2013 Pot Bearings for Railway Bridges
TB/T 3320-2013 Spherical Bearings for Railway Bridges
TB/T 2331-2004 Pot Bearings for Highway Bridges
JT/T 4-2004 "Roller Plate Bearings for Highway Bridges"
JT/T 391-2009 Pot Bearings for Highway Bridges
GB/T 17955-2009 Technical Requirements for Spherical Bearings
GB/T20688.1-2007 Test Methods for Seismic Isolation Rubber Bearings
GB/T20688.2-2006 "Rubber Bearings for Seismic Isolation of Bridges"
GB/T20688.3-2006 "Rubber Bearings for Seismic Isolation in Buildings"
GB/T 20688.4-2007 Rubber Bearings Part 4: Ordinary Rubber Bearings
JT/T822-2011 Lead-core Seismic Isolation Rubber Bearings for Highway Bridges
JT/T842-2012 High Damping Seismic Isolation Rubber Bearings for Highway Bridges
