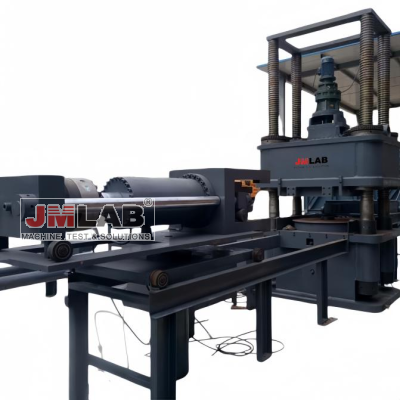

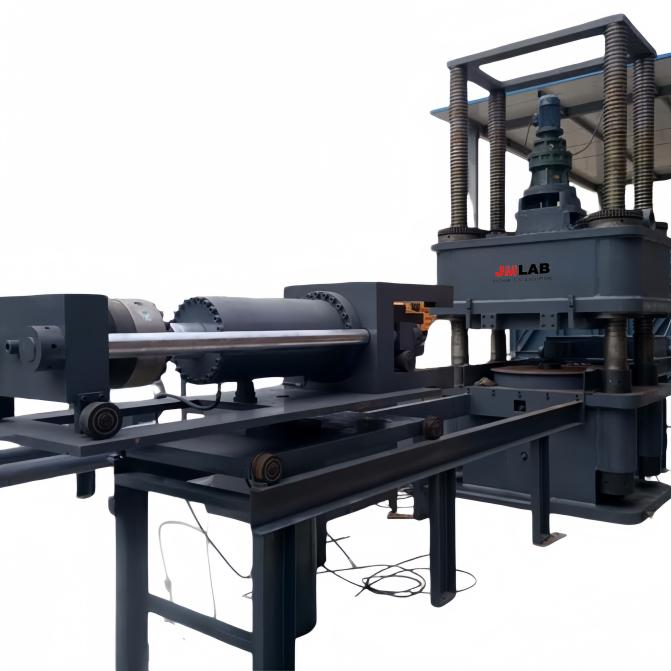

JM-20000YJ Electro-hydraulic Servo Compression-Shear Testing Machine

Maximum space of the testing machine:

900mm

Clear distance between columns:

X direction 1520mm Y direction 1030mm

Active actuator:

Maximum load: 20000kN

Load accuracy:

Better than ±1% (0.4%-100%FS)

Working piston speed:

0～30mm/min (adjustable)

Maximum stroke of the working piston:

900mm

Lower pressure plate dimensions:

1450*1450*450mm

Lower pressure plate movement method:

Motor Drive

Maximum displacement:

900mm

Displacement accuracy:

Better than ±1% FS

Displacement resolution

0.001mm

Main unit dimensions:

7850x2310x5220 (height) mm

Hydraulic source dimensions:

1360x762x1525mm

Control cabinet appearance

1700x880x930mm

Maximum horizontal shear force of horizontal actuator:

4000kN

Indication accuracy:

Better than ±1% (1%-100%FS)

Working piston propulsion speed:

0-50 mm/min (adjustable)

Maximum stroke of the working piston:

300mm

Displacement accuracy:

Better than ±1% FS

Displacement resolution

0.003mm

Maximum angle output of the angle actuator

1200 kN

Indication accuracy

(60～1200kN): ±1%

Working piston propulsion speed:

0-60 mm/min (adjustable)

Maximum stroke of the working piston:

100mm

Displacement accuracy:

Better than ±1% FS

Displacement resolution

0.003mm
