Tính năng kỹ thuật
1. The touchscreen display shows the force value, displacement and deformation in real time, and the test is completed automatically. The maximum value of the test is automatically saved. The display interface can show the test curve, test speed, deformation and other parameters in real time.
2. It adopts a high-precision, fully digital speed regulation system and a precision reducer to drive a precision lead screw pair for testing, achieving a wide range of test speed adjustment and smooth operation.
3. It adopts high-precision sensors and professional measurement and control software, which can achieve high testing accuracy, wide testing range and simple operation.
4. It comes standard with a mini printer, which can print results at any time and can statistically analyze the results of multiple tests, including the maximum, minimum, and average values.
5. It supports computer analysis software , displaying software curves and test results simultaneously on a single interface. Test data, such as force, time, and distance, are displayed synchronously in the software during the test. Data analysis, results, and curves are supported; data can be stored indefinitely; and A4 reports can be printed.
Thông số kỹ thuật
Measurement range: 50 N (100 N, 500 N, 1000 N optional) | Resolution: 0.1N |
Accuracy: ±0.5% | Test speed: (1-300) mm/min |
Upper pressure head: 10-30mm pressure head | Upper and lower pressure plates are parallel: <0.025mm |
Lower pressure plate diameter: 120 mm | External dimensions: 430×350×710mm |
Weight: 45kg | Power supply: 220V, 50Hz |
Standard configuration:

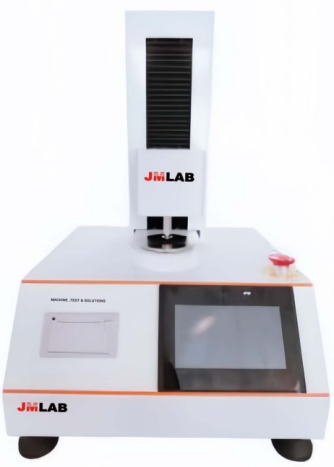

The standard configuration includes the main unit of the soft capsule elasticity (hardness) tester, testing accessories, and a mini printer.
Purchase options: Lenovo computer, inkjet printer, online computer control software.
