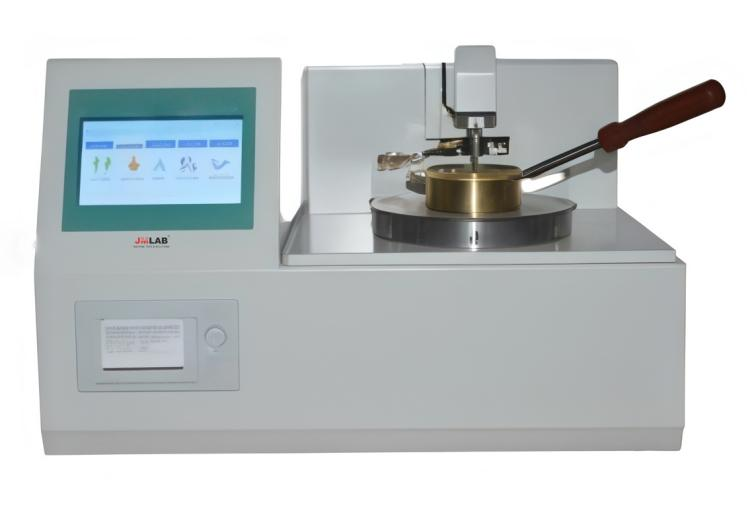

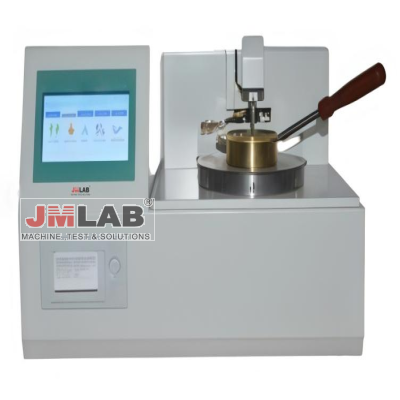

JM-92D Open Flash Ignition Point Automatic Tester

Product Introduction

The JM-92D open flash point automatic tester is used to determine the open flash point and fire point values of petroleum products. The instrument uses electric ignition and does not require any flammable gas. It fully complies with the standard method requirements of GB/T3536-2008, GB/T267-88 , and ASTM D92 . The instrument uses a high-performance ARM microprocessor and fuzzy PID technology for temperature control. The heating rate is uniform and stable.

The instrument also uses a touch-screen color LCD to make human-computer interaction more convenient. It is a special instrument for replacing imported products in the petroleum, electric power, chemical, commodity inspection and other industries.
Product Feature

(1) High degree of automation: automatic heating, sweeping, lifting, cooling, printing, and calibration of test results;

(2) Precise temperature control: using advanced fuzzy PID temperature control technology;

(3) Adopt advanced ion ring flash fire detection technology;

(4) Can test the open flash point and ignition point of the sample;

(5) Test over-temperature automatic stop;

(6) Instrument self-test function;

(7) Ignition brightness adjustment function;

(8) The test arm lifting adopts a pitching structure;

(9) Large data storage capacity, can save 3000 analysis and test records (optional);

(10) Data record printing function.

Technical specification

(1) Comply with standards: GB/T3536-2008 GB/T267-88

(2) Display mode: touch-screen high-definition color LCD

(3) Measuring range: -60～400℃, room temperature～400℃ (temperature control range)

(4) Resolution: 0.1°C

(5) Repeatability: room temperature ~ 110℃ ±2℃, above 110℃ ±2℃

(6) Lifting mode: pitching

(7) Ignition method: electric ignition

(8) Data records: 3000

(9) Printing method: thermal printer

(10) Ambient temperature: 5～40℃

(11) Relative humidity: 10% to 80%

(12) Power supply: AC220V±10% , 50Hz±5%

(13) Power: 550W

(14) Weight: 15.5kg

(15) Appearance: (length * width * height) 435 * 350 * 280mm
