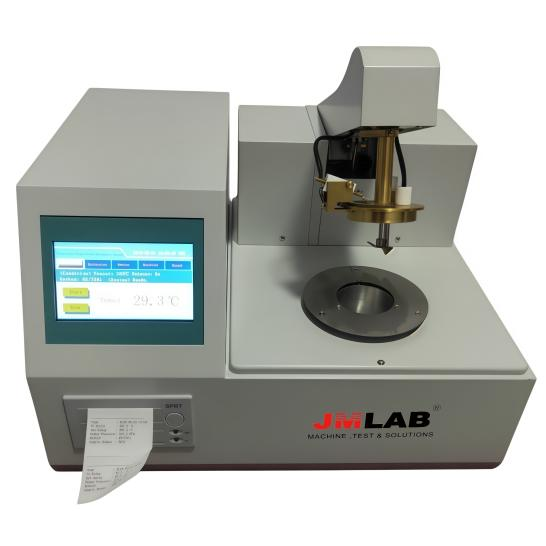

JM-93D New National Standard Fully Automatic Closed-Cup Flash Point Tester

Product Introduction

This fully automatic closed-cup flash point tester is primarily used for determining the closed-cup flash point value of petroleum products. The instrument employs ARM microprocessor technology, a color LCD, a resistive touchscreen, and a Chinese menu for convenient human-machine interaction. It features power-off memory (displaying and printing stored data), automatic ignition, display, locking and printing of results, and automatic cooling. The instrument also has an external adjustment function for the igniter brightness. It boasts advantages such as accurate measurement, good repeatability, stable and reliable performance, and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, and scientific research sectors, and meets the latest standards GB/T 261-2021 and ASTM D93.

Technical parameters

Applicable standards: GB/T261-2021, ASTM D93

Display: Color LCD display

Operation method: Touch screen

Measurement range: room temperature ~ 400℃

Temperature detection: Platinum resistance thermometer

Repeatability: >110℃ ±2℃ ≤110℃ ±1℃

B100: ±2℃ (only for "Step C")

Ignition method: Electric ignition

Data storage: 3000 test results (stored data can be displayed and printed)

Internal clock: Can operate normally for 10 years after power failure

Cooling method: Forced air cooling

Printer: Thermal printer

Power supply: AC 220V±11V, 50Hz±2.5Hz

Power: 300W

Applicable ambient temperature: 10℃~35℃

Applicable relative humidity: <85%
