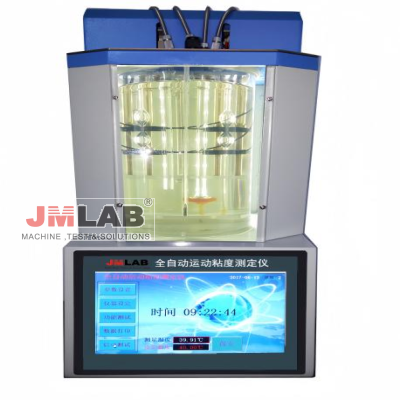

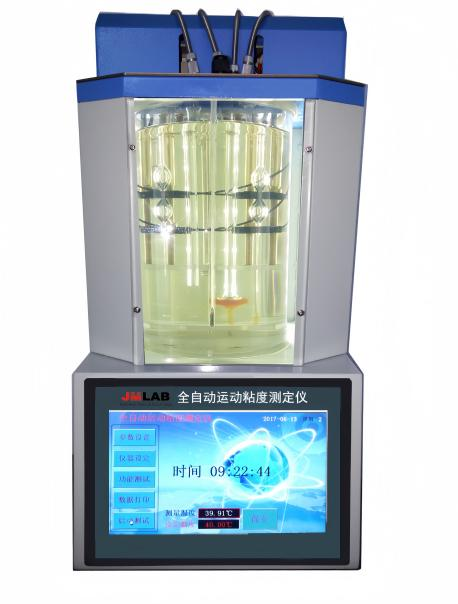

JM-265H Fully Automatic Kinematic Viscosity Meter

Product Introduction

The fully automatic kinematic viscosity meter is designed and manufactured in accordance with the national standard GB/T265.

The instrument employs a modular design. The detection section utilizes advanced sensors and high-precision AD conversion circuits, while the main control section employs a highly reliable 16-bit RISC architecture with multiple industrial applications and ultra-low power consumption microprocessors. Reliable communication integrates all modules into a unified and reliable measurement and control platform. The program uses a high-quality, streamlined modular design, organically integrated with the hardware, enabling fully automated completion of all tasks in the kinematic viscosity measurement process, including heating and temperature control, liquid level detection, timing, cleaning of the viscosity tube, and printing, achieving one-button result output. The fully automatic kinematic viscosity meter has four preset measurement parameters for selection when testing different samples, facilitating operation. These preset parameters are also modifiable to meet the requirements of measuring special samples. The fully automatic kinematic viscosity meter has a factory reset function; if the settings are incorrectly adjusted, the "reset to factory settings" option can be selected to restore normal operating conditions. Furthermore, the instrument's internal self-test function ensures long-term continuous reliability.

Features

This instrument uses a fiber optic transmission detection method, which is completely different from the ordinary optical dot tube detection method used by other manufacturers.

★ User-friendly interface for easy operation

★One-click completion of kinematic viscosity measurement simplifies operation.

★Fully automatic sampling, timing, calculation, printing, cleaning, and drying.

★ Four preset parameters are available for selection.

★Preset parameters can be modified to adapt to special requirements.

★Infrared liquid level detection is unaffected by indoor light or artificial light.

★The liquid level detection position is adjustable, allowing for flexible operation.

★ Fully modular design ensures stability and high reliability

★ Automatically stores 100 test results, which can be viewed or printed at any time.

★The testing process adheres to standard regulations, ensuring reliable data.

★The detection method is reliable and has good repeatability.

★ Capable of continuous operation for extended periods with an extremely low failure rate.

Technical features

Temperature range: room temperature to +100°C, accuracy ±0.01°C.

Temperature sensor: German-imported Pt 100 stainless steel probe with built-in temperature calibration, ensuring reliable detection results.

Heating method: electric heating unit, maximum heating power 1500 W, programmable control of heating rate.

Liquid level detection: Infrared photoelectric detection.

Display: 10-inch color touchscreen.

Temperature calibration: Fully automatic calibration, programmable calibration.

Data storage: 100 sets of test results.

Power supply: AC220V 50Hz. Maximum power: 1500W

Operating ambient temperature: 10～40℃

Storage temperature: 0～50℃
