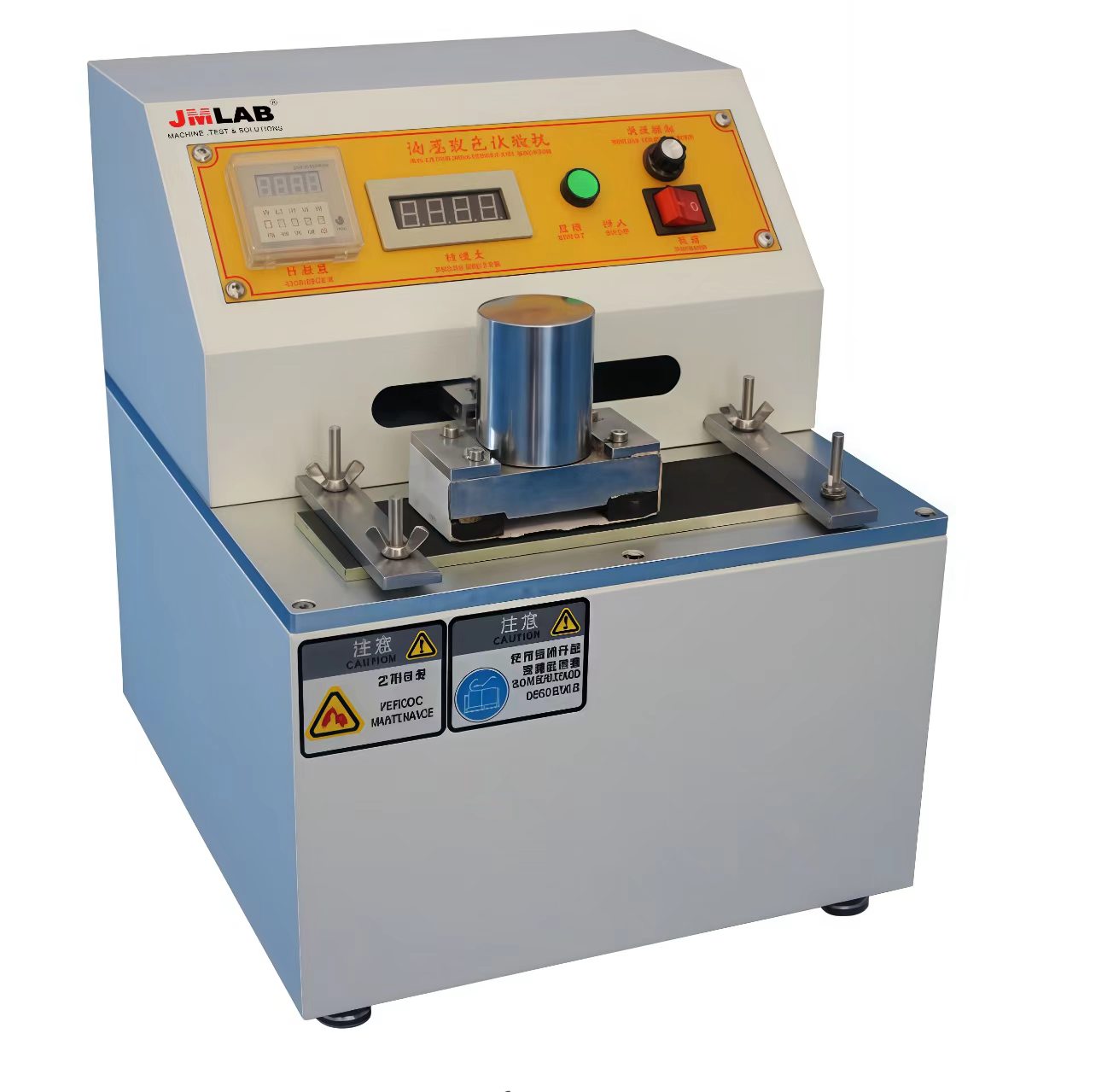

JM-MCY Friction Tester

Product Application

Used to test ink adhesion to determine ink quality, it can be used for dry abrasion testing, wet abrasion testing, color change testing, paper blurring testing, and special abrasion testing. Ink abrasion resistance testing is a test method designed to evaluate the abrasion resistance or friction resistance of ink stains on paper or paperboard.

This instrument is suitable for testing the abrasion resistance of printed ink layers, PS plate photosensitive layers, and related product surface coatings. It effectively analyzes problems such as poor abrasion resistance of printed materials, ink layer peeling, low printing durability of PS plates, and poor coating hardness in other products.

Applicable Standards Relevant standards such as GB/T 7706,

JIS-5071-1, TAPPI-UM486, and TAPPI-UM487

Product Features:

(1) Designed strictly in accordance with national standards, the friction table has a surface roughness ≥1.6μm.

(2) Friction body thickness 8mm, hardness 50-53Hs, distance between two friction bodies 45mm

(3) It is controlled by a microcomputer and equipped with a PVC control panel, making it simple and convenient to operate.

(4) Adjustable number of friction tests

(5) The built-in standard friction table ensures a uniform friction area and quiet operation during the friction process.

Performance Parameters:

Friction speed: Adjustable (21/43/85/106) r/min

Friction load: 20N±0.2N (other loads can be customized)

Friction stroke: 60mm

Friction area: 50*155mm

Number of uses setting: 0-99999 (automatic shutdown)

Power: 40W

Machine dimensions: 300×325×300cm
