JM-YQ3 API Sampler

Working Principle

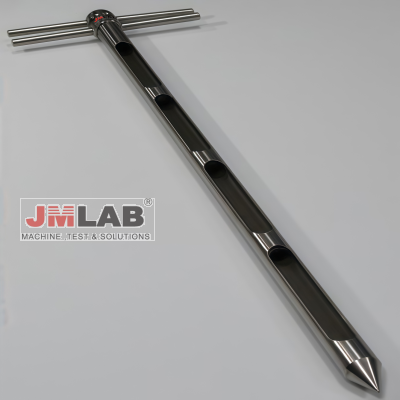

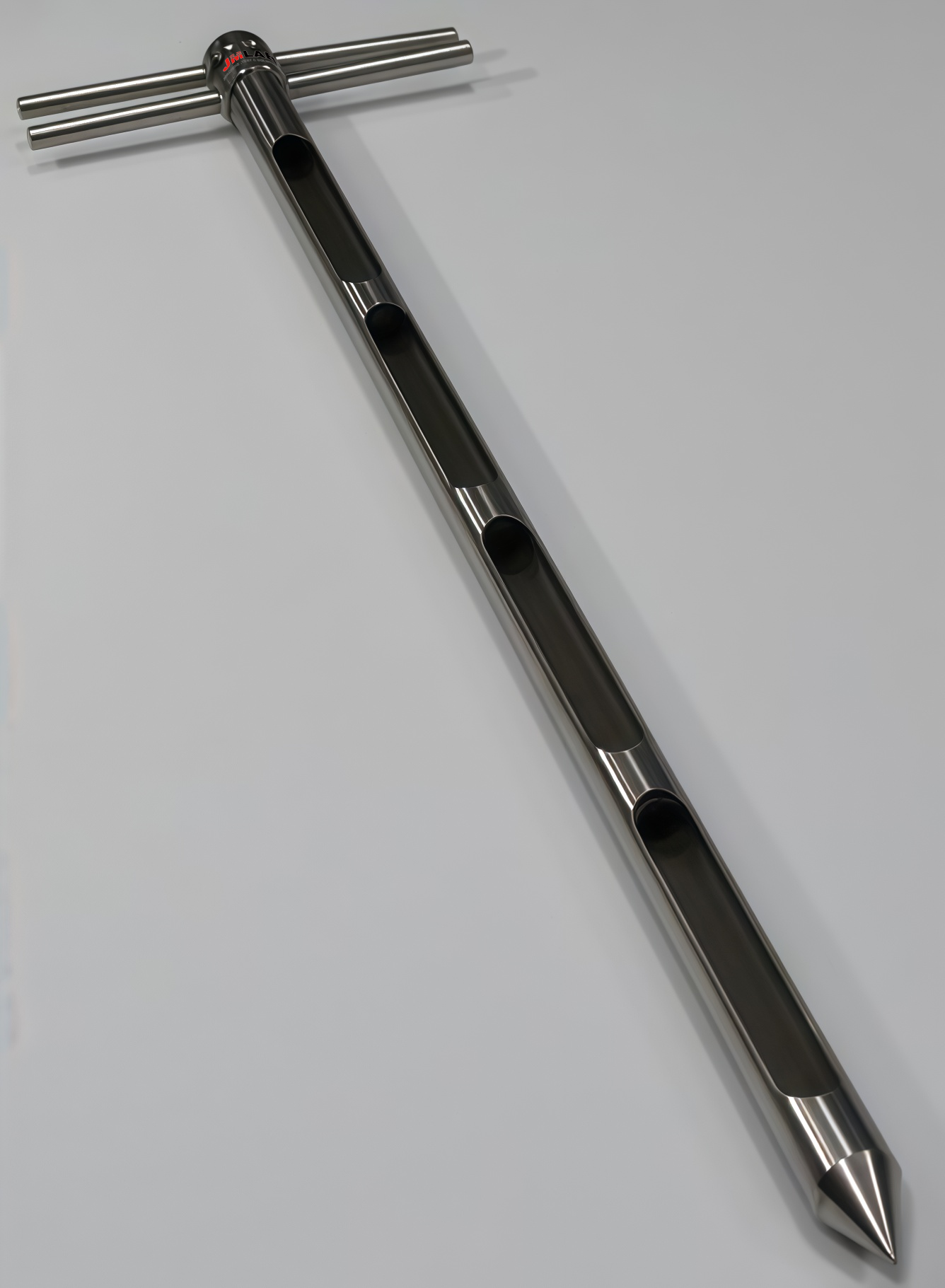

The sampler consists of two tightly fitted stainless steel tubes. The sampler has a built-in sampling bottle at the end. The outer tube has one set of slots, and the inner tube (conductive) has a corresponding set of slots. During sampling, the slots of both tubes are closed, and the sample is inserted into the material at a certain angle. After reaching the designated depth,the handle is turned to open the slots, and the sample enters the sampling probe through the opened slots. Before withdrawing the probe, the slots should be closed. After withdrawing the probe, the sampling probe is inverted, and the collected material is poured into the sample container at the end. Sampling is complete without the need for secondary sample transfer.

Product Applications:

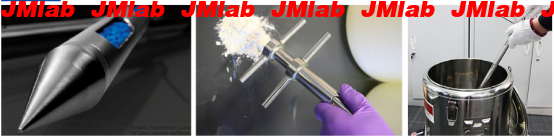

It is suitable for composite sampling of materials such as pharmaceutical powders, small granules or crystalline chemical products, soil, cement, feed, and fertilizers. It is also suitable for collecting samples of crops such as corn, soybeans, rice, seeds, peanuts, wheat, and grains.

Standard materials: 304 stainless steel; other materials (customizable): 201 stainless steel, galvanized pipes, brass.

Number of slots: 3 slots; Slot dimensions: Slot width 16mm, Slot length 114mm; Spacing between three slots: 50mm (other slot sizes can be customized); Up to 10 slots.

Customers can choose the following outer diameters: 19mm, 22mm, 25mm, 32mm, 38mm, 42mm, 45mm

Model diameters: φ19mm, φ25mm, φ28mm, φ32mm, φ38mm

Product length: Length: 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 2000mm, 50CM-400CM (custom sizes available)

Tail end requirements: straight-through sampling, with a sampling bottle at the end.

Service life: 4 years for galvanized steel, 8-10 years for stainless steel steel

Features:

◆ Convenient sampling and highly practical

◆Made of 304 stainless steel, a sanitary grade material, ensuring sample purity and widely used in petrochemical, food, and medical industries.
  ◆All parts are detachable, with an attractive appearance for easy cleaning, preventing the retention of bacteria and contaminants.

◆It is not only suitable for collecting mixed samples, but can also be processed into a slotted independent sampling sampler, which is suitable for collecting samples at point locations.

◆ Various specifications and models are available for users to choose from; custom processing is also accepted.

Instructions for use: Before use, rotate the handle to close the orifice. After inserting to a certain depth, rotate 90° to open the sampling orifice. The sampling orifice will then rotate and fill with water. Rotate again to close the orifice and then pull it out. The bottle-type sampling sampler conforms to GB/T 6679-2003 "General Rules for Sampling of Solid Chemical Products".

Standard Configuration: sampler, sampling bottle
