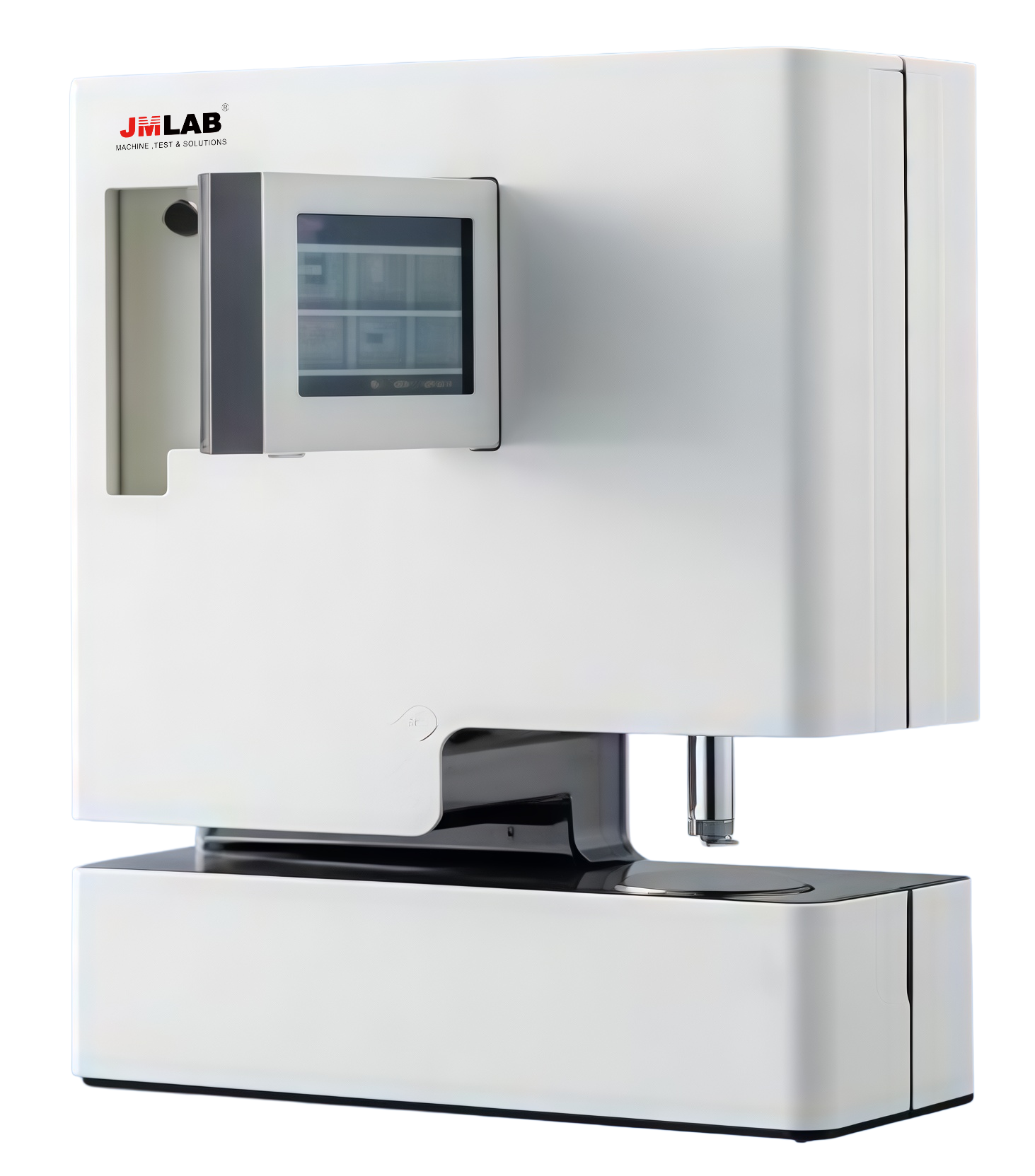

JM-YCCH01 Fully Automatic Computerized Thickness Gauge

GB/T 6672-2001

Mechanical Measurement Methods for Determining the Thickness of Plastic Films and Sheets

GB/T 451.3-2002

Determination of paper and paperboard thickness

GB/T 6547-1998

Method for measuring the thickness of corrugated cardboard

ISO 4593-1993

Mechanical scanning measurement of thickness of plastic films and sheets

ISO 534-2011

Paper and paperboard – Determination of thickness, density and specific volume

ISO 3034-2011

Corrugated cardboard - Sheet thickness measurement

ASTM D374-1999

Test methods for the thickness of solid electrical insulation materials

ASTM D1777-1996(2007)

Textile Material Thickness Test Method

JIS K6250-1997

General rules for physical test methods of vulcanized rubber and thermoplastic rubber

JIS K6783-1994

Agricultural ethylene-vinyl acetate copolymer film

JIS Z1702-1994

Polyethylene film for packaging

BS 3983-1989

Methods for measuring the thickness and sheet density or single-sheet density of paper and paperboard

BS 4817

Methods for determining the thickness of corrugated fiberboard

TAPPI T411

Determination of thickness of paper, paperboard and composite paperboard

Power supply: 220V±10%/50Hz±10

Unit of measurement: mm

Accuracy: 0.001mm

Measurement range: 0-4 mm

Resolution: 1 micrometer

Descent speed: Adjustable, range 1-5.7mm/sec

Contact area: (200±5) mm2;

Contact pressure:

(100±10) kPa; / 17.5±1 kPa (thin film (50±1 kPa optional))

Stable dwell time: Adjustable, range 0-999 seconds.

Printer: Modular all-in-one thermal printer;

Test results show: 7-inch high-brightness color Chinese touch screen

Monitor angle: Adjustable and can be freely flipped.

Data interface: RS232 data interface/network port

Computer software: Used for data storage, processing, and transmission.

application:

Paper, corrugated paper , tobacco leaves, tobacco sheets, and other materials

Injection method:

Manual injection/Automatic injection

Injection interval: Injection time is adjustable

Test modes: Manual test / Automatic test

Power supply: AC110V~220V 50Hz/60Hz wide range

Net weight: 12Kg

Note: The air supply interface of this machine is a Φ6 mm polyurethane tube; the air supply is to be provided by the user.
