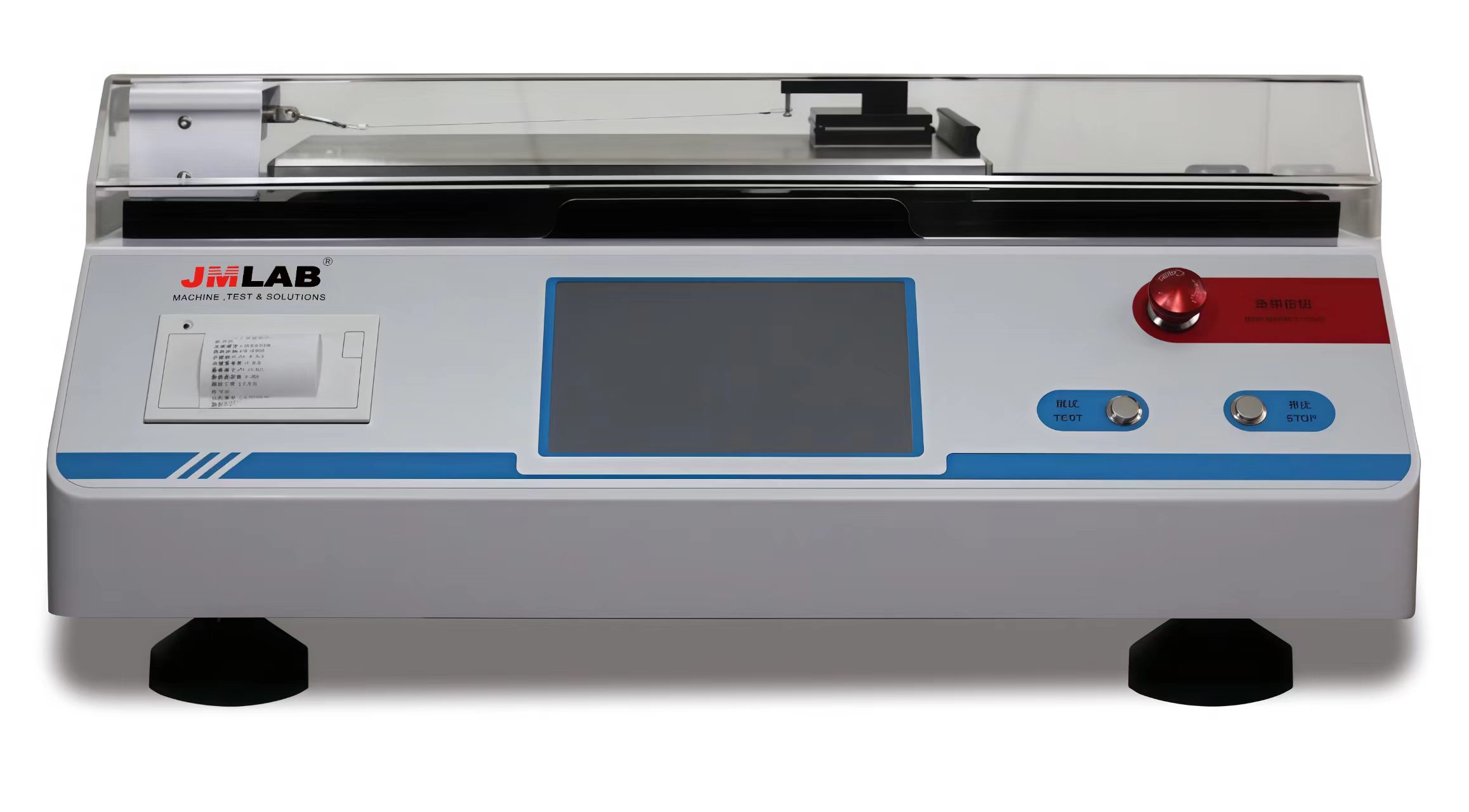

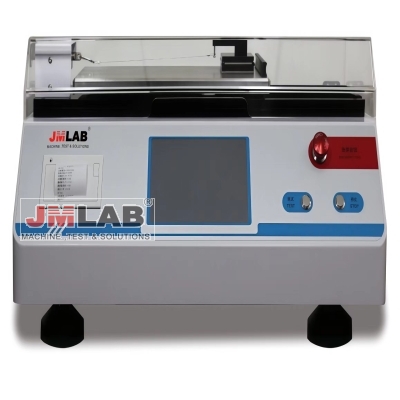

JMXD-03 Computerized Friction Coefficient Tester (7-inch Touchscreen Color Screen)

Product Functions

This device measures the static and dynamic coefficients of friction when materials such as packaging, films, plastics and sheets, paper, rubber, woven bags, cardboard, fabric textures, conveyor belts, metal composite belts for communication cables and optical fibers, tiles, glass, wood flooring, brake pads, shoe materials, wipers, tires, and screens slide. By measuring the slip properties of these materials, it guides the adjustment and control of material production quality process parameters. Customization is also supported for different products, such as cosmetics, skincare products, and medical products.

Features

(1) Industrial-grade high-definition color touchscreen with a menu-driven interface, allowing users to easily control and display real-time data and curves.

(2) The instrument meets multiple testing standards including GB, ISO, and ASTM, and the testing methods can be selected according to customer requirements.

(3) Three modes of equipment: static friction coefficient, dynamic friction coefficient, and dynamic-static friction coefficient.

(4) The force accuracy is better than 0.5 grade, effectively ensuring the accuracy and repeatability of the test.

(5) Employing a renowned brand's operating system and paired with a precision ball screw, it provides speed accuracy better than 0.5 grade, stepless speed regulation, and smooth operation.

(6) All system components are from world-renowned brands, ensuring the system's accuracy and stability.

(7) Imported high-speed, high-precision sampling chips ensure the real-time performance and accuracy of test data.

(8) The transparent dust cover design facilitates countertop cleaning and protects the countertop. The transparent cover also allows for easy monitoring of the product's operating status.

System Advantages

(1) The settling time is automatically timed to ensure sufficient contact between samples.

(2) The dynamic/static friction coefficients are automatically zeroed before the test begins, improving the accuracy of the test results.

(3) Both the test platform and the test slider have undergone demagnetization treatment and residual magnetism detection, effectively reducing system test errors.

(4) The instrument is equipped with intelligent features such as limit protection, overload protection, automatic return, and power-off memory, effectively ensuring user operational safety.

(5) Multi-level user permission settings allow users at each level to arbitrarily set operation permissions according to actual needs.

(6) The test curve displays the trend of force value changes in real time during the test.

(7) Equipped with a USB interface, it facilitates external access to the computer system, data transfer, and software upgrades.

(8) Supports quick viewing of historical data, overlay and comparative analysis of grouped experimental data, and enables traceability of experimental data.

(9) Equipped with a mini printer, it prints test results in real time.

(10) Professional computer control software provides a variety of practical functions, such as statistical analysis of grouped samples and comparison of historical data (optional).

(11) The transparent dust cover design facilitates countertop cleaning and protects the countertop. The transparent cover also allows for easy monitoring of the product's operating status.

Reference Standard

GB 10006, ISO 8295, ASTM D1894, TAPPI T81

Indicator Parameters

Measuring range: 5N (standard), 3N, 10N, 30N (optional)

Accuracy class: better than 0.5

Resolution: 0.001N

Travel: 300mm

Control method: 7-inch touchscreen

Slider weight: 200g (standard), 500g (optional) Note: Other weights can be customized.

Test speed: 0.1 ~ 500 mm/min (stepless speed regulation); Note: 100 mm/min (Chinese national standard), 150 mm/min (American standard)

Sample thickness: 0–10 mm

Power supply: AC 220V 50Hz

External dimensions: 630mm (L) × 320mm (W) × 260mm (H)

Approximate net weight: 38kg

Product Configuration : Main unit, mini printer, 200g slider, 500g slider, analysis software, communication cable

The Product Advantages Are As Follows:

1. The seven-inch color screen provides intuitive and concise test data, is easy to operate, and requires no computer.

2. It can be connected to a computer, has computer data analysis software, and supports A4 report printing.

3. It features password access control, facilitating hierarchical management of the instrument and ensuring data confidentiality.

4. The testing accuracy is better than 0.5 level.

5. Test speed 0.1 ~ 500 mm/min (stepless speed regulation); in addition to supporting national and American standard speeds, 100 mm/min (national standard) and 150 mm/min (American standard) are also supported, as well as numerous industry standards. This facilitates data analysis of friction coefficients at different speeds, making it convenient for scientific research and quality control.

6. The settling time is automatically timed to ensure sufficient contact between samples.

7. Features a comprehensive configuration, including a transparent dust cover design that facilitates countertop cleaning and protects the surface. The transparent cover also allows for easy monitoring of the product's operating status.
