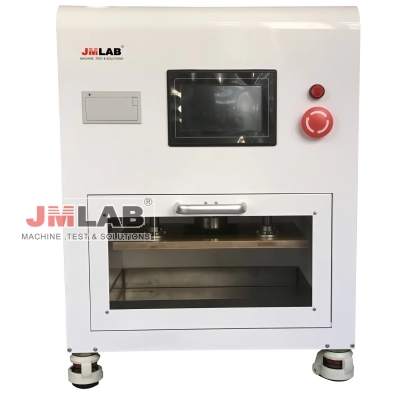

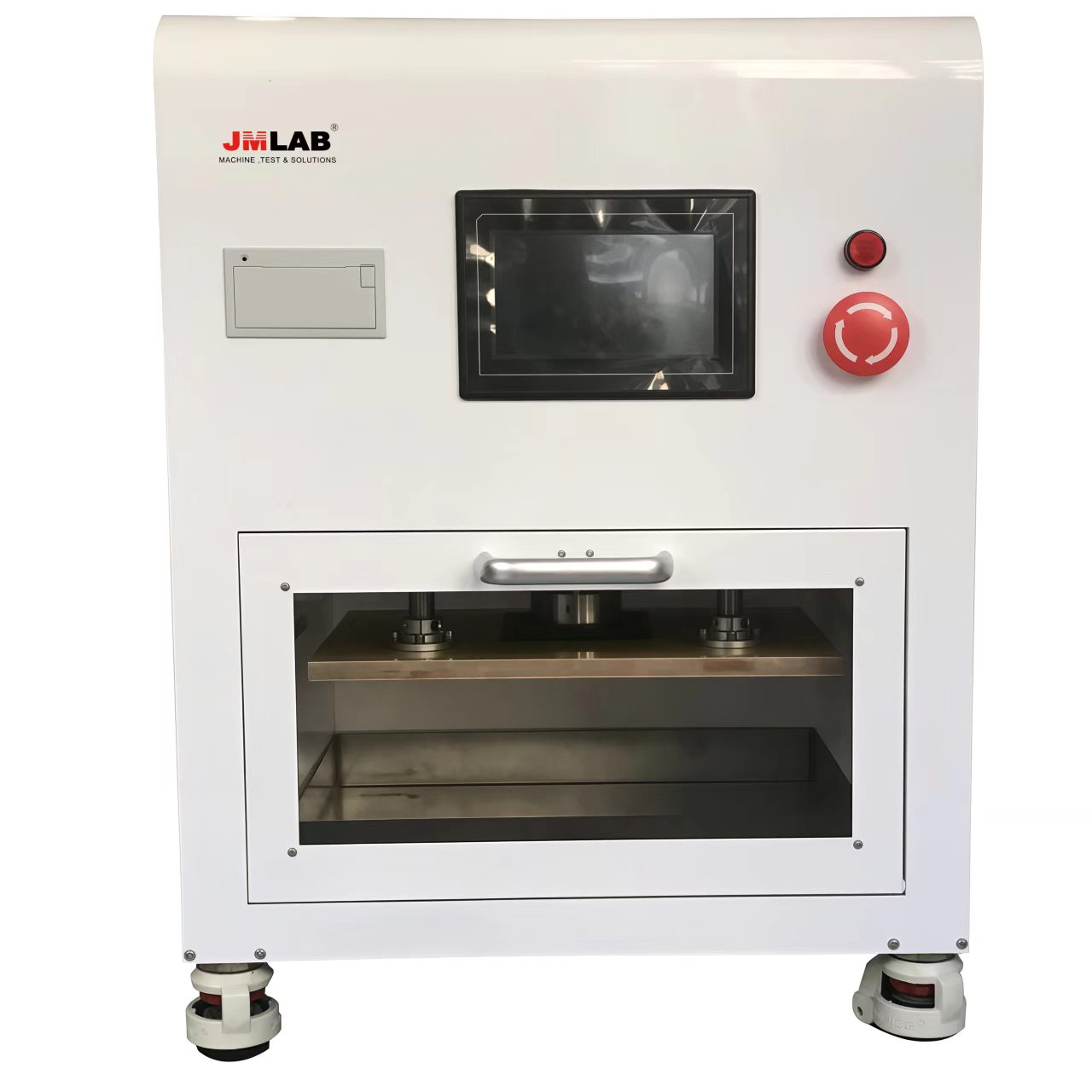

JMNY-01B Packaging Bag Compression Strength Tester

Product Introduction

The packaging bag compression strength tester is a commonly used instrument for testing the compression resistance of packaging bags. It is widely applicable to various nitrogen-filled packaging bags, liquid milk packaging bags, sauce packaging bags, and can also be used for testing the compression resistance of infusion bags, plastic infusion bottles, blood bags, etc. It meets standards such as GB/T10004-2008 "Dry Lamination and Extrusion Lamination of Plastic Composite Films and Bags for Packaging".

Test principle:

The sample is clamped between two chucks of the fixture, and the two chucks move relative to each other. The force value sensor located on the moving chuck collects the force value changes during the test. After reaching the set pressure, the pressure is maintained. If the sample does not break or leak during the entire process, it is considered qualified; otherwise, it is unqualified.

Technical features:

★ Large LCD display shows the experimental process curves clearly, providing a clear
overview of the pressure resistance process;

★ Touchscreen display and aesthetically pleasing cabinet structure;
★ Utilizes sensors for accurate and reliable test results;
★ Offers dual testing functions for pressure holding and burst tests;
★ Statistical analysis of experimental results meets diverse customer needs;

★ Intelligent features such as limit protection, overload protection, automatic return, and power-off memory ensure user safety.

★ Equipped with a mini printer to quickly print test results; the instrument automatically judges the experimental results.

Technical parameters:

Configuration: Main unit, power cord, testing tools, mini printer. Optional: Measurement certificate, air compressor.
