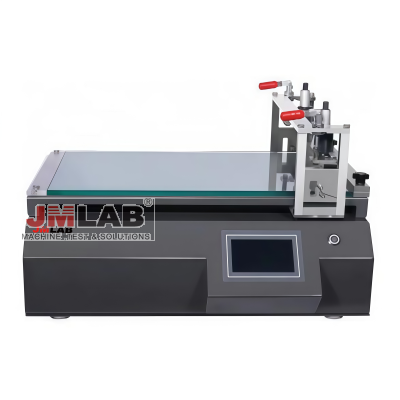

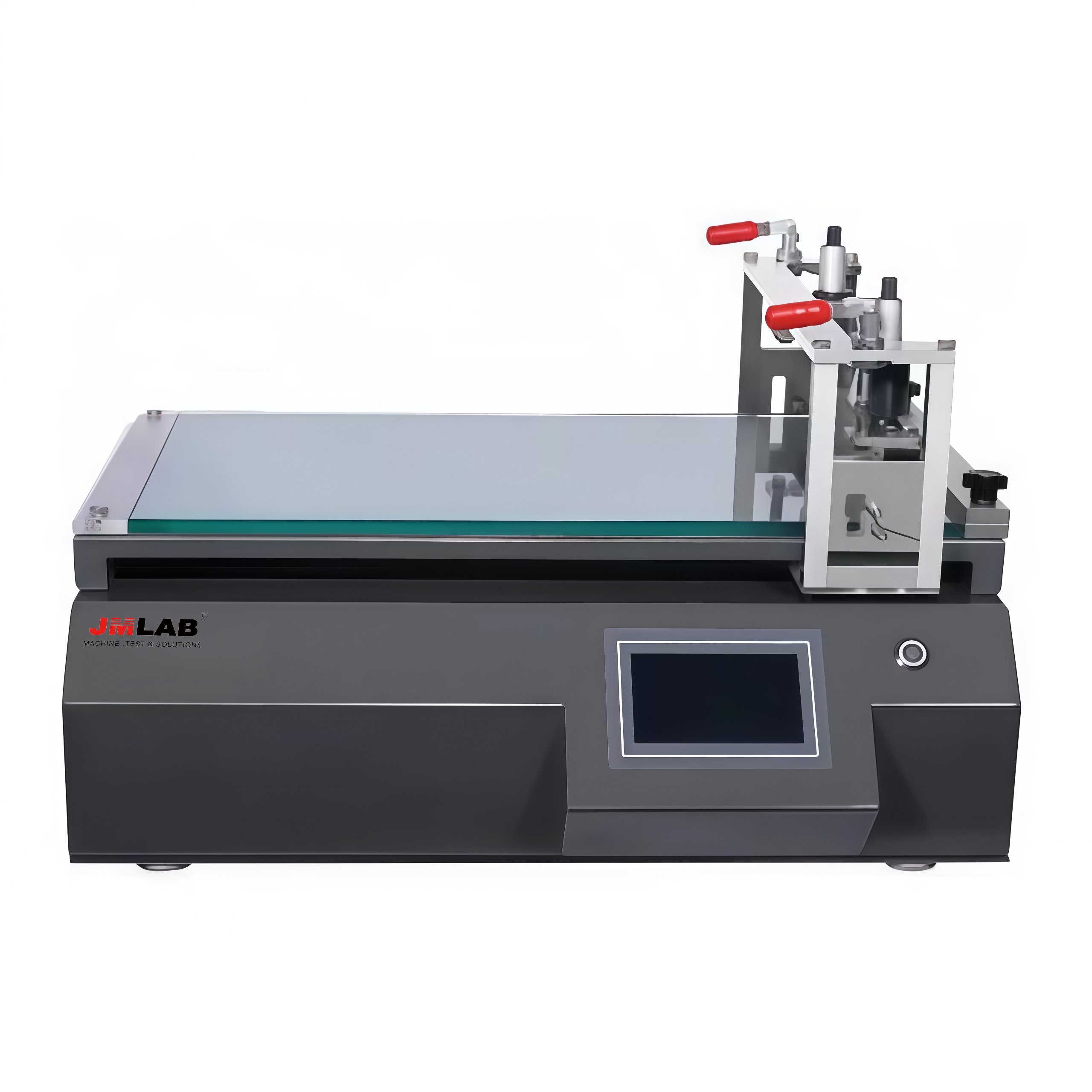

JM-TBU-S1 Integrated Linear Bar and Scalpel Coating Testing Machine

Product Applications:

Coating testing machines can perform coating experiments on various flat materials such as paper, plastics, metals, PVC, PET, fabrics, and aluminum alloy plates. Since the main factors affecting the coating film include coating speed and the pressure applied to the coating applicator, manually coated coatings often exhibit inconsistencies, especially between different operators, making it difficult to compare test results between samples. The JM-TBU-S1 integrated wire bar and doctor blade coating testing machine is meticulously designed to allow operators to easily coat precise wet films on different substrates. By controlling the speed and maintaining stable pressure, it ensures coating effect, uniformity, and stability, greatly improving coating reproducibility.

Product Features:

The JM-TBU-S1 integrated bar and blade coating testing machine uses all precision components and has been favored by many multinational corporate R&D institutions, domestic and foreign universities and research institutions.

Synchronous belt drive provides smoother transmission and eliminates vibration.

(1) Digitally adjustable speed, stepless speed regulation for precise control of coating speed

(2) The wet film thickness is adjusted and controlled using a high-quality manufacturer's micrometer, which is simple and easy to operate.

(3) Mechanical fixing fixtures help to flatten the substrate.

(4) The coating platform undergoes special treatment to ensure high flatness.

(5) The scraper is made of 304 stainless steel, which is easy to clean and does not corrode.

(6) It adopts a 5-inch touchscreen to reduce interference from external forces on the hands.

(7) A quiet, durable, vibration-free motor reduces coating vibration and ensures smooth coating.

Performance Parameters:

Users can select different wire rods to achieve different coating thicknesses. (The wire rods are imported and have high engraving precision.)

The wet film thickness that can be coated by the wire rod is available in various sizes (5, 6, 8, 10, 12, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 200 μm).

Japanese OSP wire rod wet film thicknesses are available in (0, 1.5, 2, 3, 4, 6, 7, 8, 9, 10, 12, 13, 15, 17, 18, 20, 22, 25, 30, 35, 40, 42, 45, 47, 50, 52, 60, 64, 76, 80, 92, 96, 100, 105, 110, 120, 150 μm), with expandable functionality (optional).

To cater to different coatings, substrates, and testing needs, various functions are available, including heating, vacuum adsorption, automatic feeding, UV curing, air knife drying, and waste tank.

(The above functions can be combined in any way)
