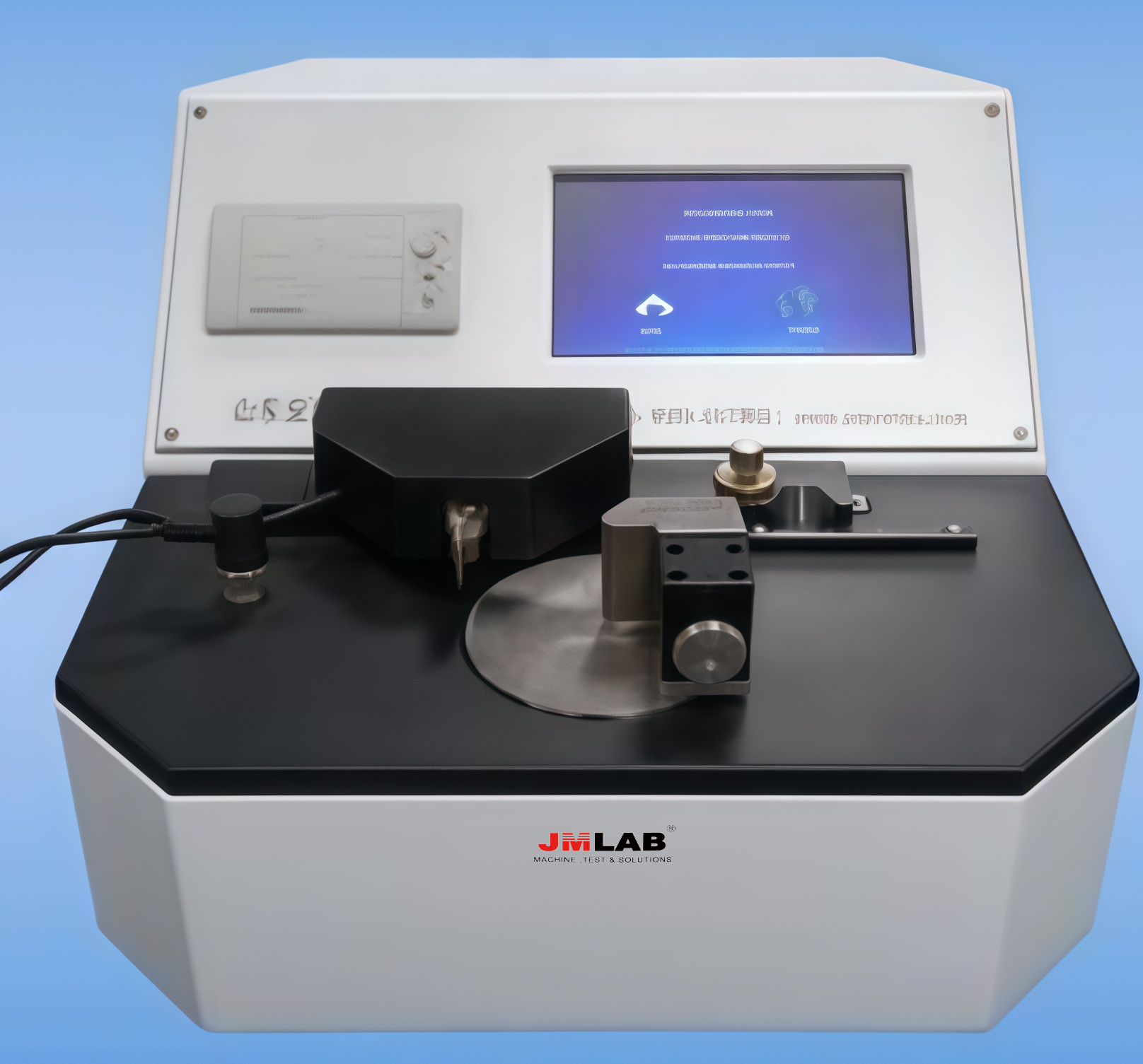

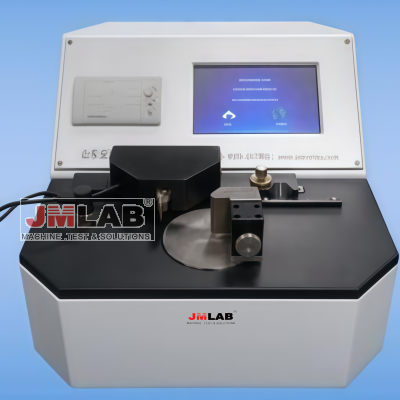

JM-TD03 Crease Stiffness Tester

Product Introduction

In the process of manufacturing cigarette boxes, problems often arise where the box springs open from the glue joint due to excessive creasing force on the cigarette label paper, or deforms and fails to form a regular shape due to insufficient creasing force. This instrument is used to measure the stiffness and creasing force of the cardboard, thus providing scientific data for controlling the ratio between stiffness and creasing force.

Chinese name   JM-TD03 Crease Stiffness Tester

Function   Determining the folding endurance of paper packaging

Technical Indicators

1. Trace test angle: 90 degrees

2. Crease sample size: 38×36m

3. Digital display: 0-1000g, unit mN/g, interchangeable.

4. Accuracy: 0.1% FS

5. Test time: 15s

6. Dimensions: 140H × 275W × 150D mm

7. Weight: 26KG
