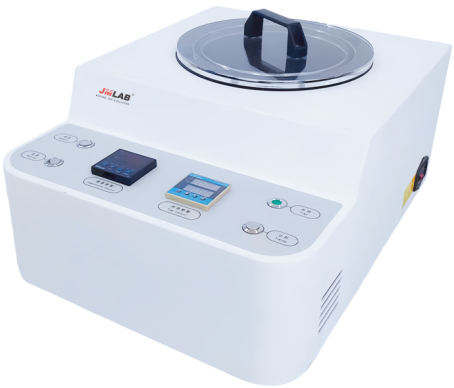

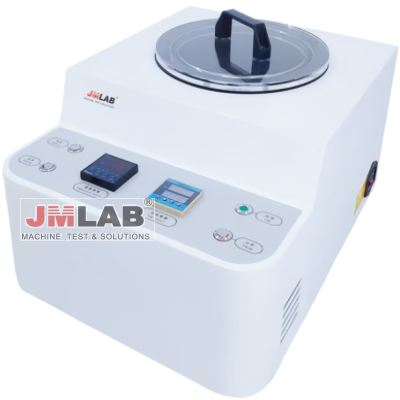

JM-C201 Heat Shrinkage Tester

Product Introduction

The heat shrinkage tester is suitable for testing the heat shrinkage properties of materials, and is suitable for testing the heat shrinkage properties of various films in liquid media at various temperatures, such as alcohol, cans, mineral water, and various beverages. PE heat shrinkable films for overall packaging, as well as PVC, POF, OPS, PET, and other shrink films, flexible packaging composite films, PVC PVC rigid sheets, solar cell backplates, and other materials with heat shrinkage properties.

Technical Features

1. Heating is a microcomputer-controlled, PVC menu-type operation interface.

2. Humanized design, easy and fast operation; equipped with standard sample clamping film grid to ensure that the sample temperature stability without interference;

3. High-precision circuit processing technology, accurate and reliable testing.

4. Liquid is heated with no volatile medium, with a wide heating range.

5. Digital P.I.D temperature control monitoring technology can not only quickly reach the set temperature, but also effectively avoid temperature fluctuations.

6. Automatic timing function to ensure test accuracy.

Test Standard

Technical Indicators

Sample size: ≤ 140mm × 140mm;

Temperature range: room temperature - 200 ℃;

Temperature control accuracy: ± 0.3 ℃;

Heating medium: oil bath;

Dimensions: 480 (L) × 360 (W) × 270 (H) mm;

Weight: 18Kg;

Working temperature: 23 ℃ ± 2 ℃;

Relative humidity: 50% ± 5%;

Working power supply: AC220V50Hz;

Standard Configuration:

Host, sample tray, sample holder, heat transfer oil, sampling knife, sampling standard ruler;
