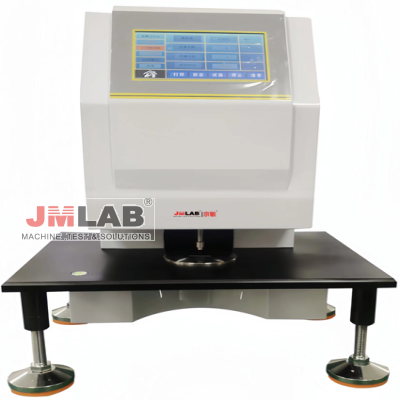

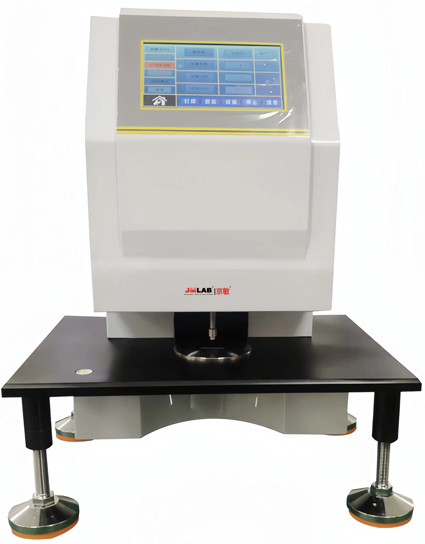

Product Introduction:
The electronic thickness gauge adopts the mechanical contact measurement method, which strictly meets the standard requirements and effectively guarantees the standardization and accuracy of the test. It is professionally suitable for accurate thickness measurement of various materials such as plastic film, sheet, diaphragm, paper, foil, silicon wafer, etc.
Test Principle:
The thickness gauge adopts the contact test principle to intercept a certain size sample. The measuring head of the thickness gauge automatically lands on the sample and tests the thickness value of the sample under a fixed pressure and a fixed contact area.
Scope Of Application:
It is suitable for accurate thickness measurement of hard and soft materials such as various films, thin sheets, diaphragms, composite films, paper, cardboard, glass, foils, silicon wafers, metal foils, hard sheets, textile materials, solid electrical insulators, non-woven materials, etc. in the range of 5mm. With a resolution of 0.1um, it is widely used in film, aluminum foil production enterprises, quality inspection agencies and other units.
Product image | Product name | scope of use |
| film | Used for thin film, sheet, battery separator, capacitive film material thickness measurement of soft materials. |
| Aluminum foil | The thickness of hard materials such as metal foil and hard sheet is measured. |
| paper | Used for thickness testing of various paper and cardboard materials. |
| silicon wafer | The contact testing principle effectively detects the thickness value of each point on the silicon wafer. |
Technical Features:
● Color large liquid crystal display test results, as well as each measurement value and statistical value;
During the test, the measuring head is automatically lifted and lowered, effectively avoiding system errors caused by human factors.
Equipped with a micro-printer, it can quickly print each measurement result, statistical size value, and average value.
Support for real-time data display, automatic statistics, printing, and many other practical functions.
● Strictly follow the standard design of contact area and measurement pressure, while supporting a variety of non-standard customization.
Equipped with a dedicated automatic sampler, it can achieve fully automatic multi-point measurement with one click, with small human error.
The test software provides graphical statistical analysis of test results, accurately and intuitively displaying test results to users.
Equipped with a standard RS232 interface, it is convenient for external connection and data transmission between the system and the computer.
Equipment Index:
Specifications | parameter |
Measuring range | 0-5Mm (suitable fixture can be customized according to needs) |
Measuring pressure | 17.5 ± 1kPa (film); 100 ± 1kPa (paper) |
resolution | 0.1 um |
contact area | 50Mm ² (film), 200mm ² (paper) Note: Paper needs to be customized |
Measurement speed | 10C/min (adjustable) |
external dimensions | 454mmX352mmX500mm |
power supply | AC220V 50Hz |
net weight | 30Kg |
Execution Standards:
Plastic films and sheets - Determination of thickness - Mechanical measuring method
GB/T 451.3-2002 paper and paperboard thickness determination
GB/T 6547-1998 Determination of thickness of corrugated board
ISO 4593-1993 Determination of thickness of plastic films and sheets by mechanical scanning
ISO 534-2011 Paper and paperboard - Determination of thickness, density and specific volume
ISO 3034-2011 Corrugated board - Determination of sheet thickness
ASTM D374-1999 Test Method for Thickness of Solid Electrical Insulating Materials
ASTM D1777-1996 (2007) Test method for thickness of textile materials
JIS K6250-1997 General Rules for Physical Test Methods for Vulcanized Rubber and Thermoplastic Rubber
Ethylene-vinyl acetate copolymer film for agricultural use
JIS Z1702-1994 Polyethylene film for packaging
BS 3983-1989 Paper and paperboard - Determination of thickness and laminated tightness or single page tightness
BS 4817 Determination of thickness of corrugated fibre board
TAPPI T411 Determination of thickness of paper, paperboard and composite paperboard
Standard configuration: thickness gauge host, standard measuring block, micro printer
Optional configuration: test software, communication cable, counterweight weight, automatic sampler
