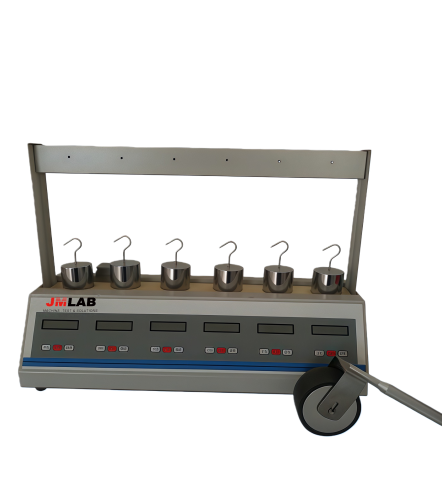

JM-CN-C6 Holding Power Tester

Product Introduction

This product is designed and manufactured in accordance with GB4851 and is suitable for testing the tackiness of pressure-sensitive adhesive tapes and other products.

Working Principle

The test plate with the sample attached is vertically suspended on the test frame, with a specified weight suspended from the lower end. The amount of displacement of the sample after a certain time, or the time it takes for the sample to completely detach, characterizes the adhesive tape's resistance to pull-out. A microcontroller is used for timing, and the test time is displayed on an LCD screen.

Technical Parameters

Standard pressure roller: 2000g±50g

Weights: 1000±10g (including loading plate weight)
Test plate: 60 (L) mm × 40 (B) mm × 1.5 (D) mm
Timing range: 0～100h
Number of stations: 6
Dimensions: 600 (L) mm × 240 (B) mm × 400 (H) mm

Net weight: 20kg
Power supply: AC 220V 50Hz
