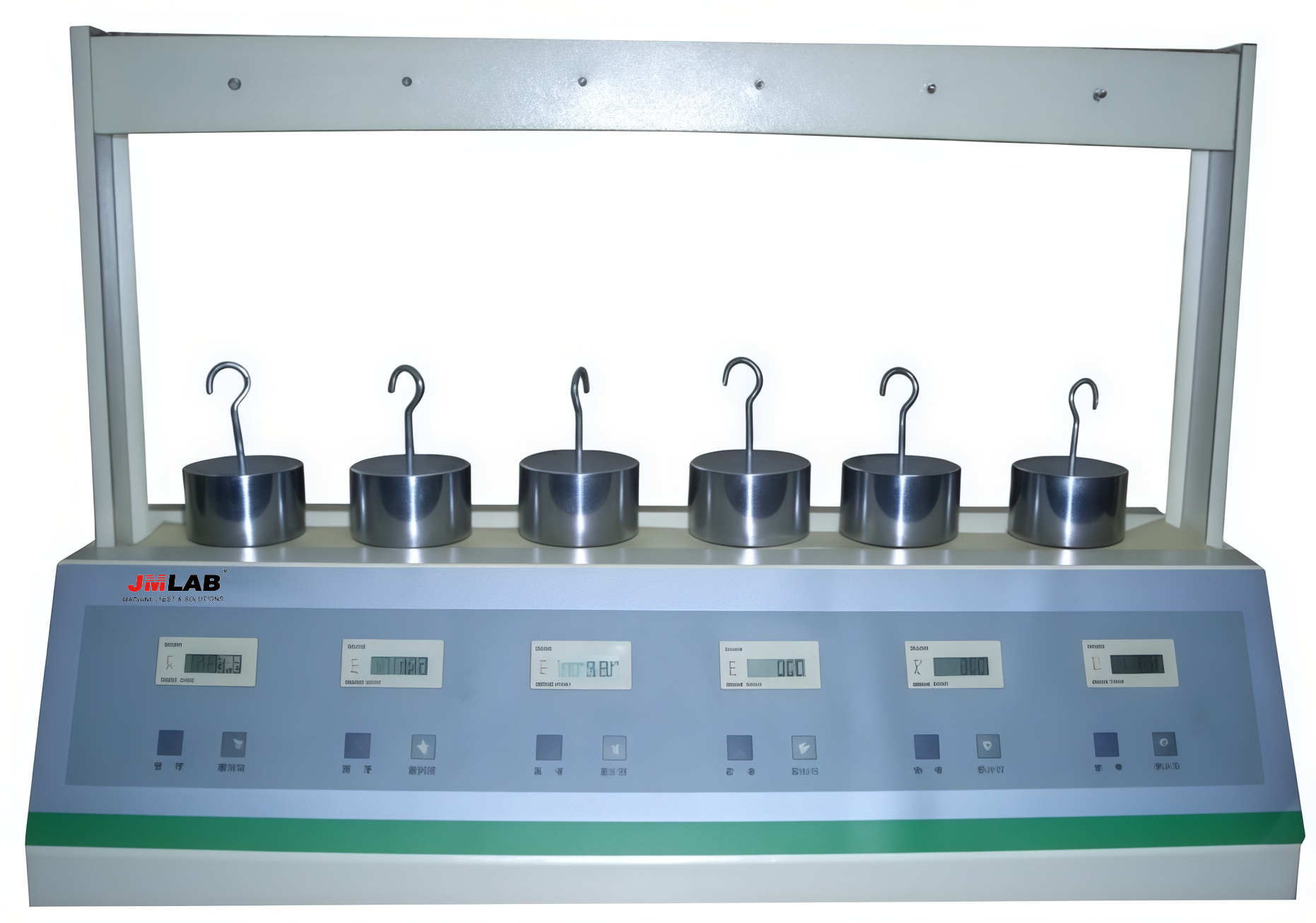

JMCN-C1 Holding Power Tester

Test Purpose

l This product is suitable for conducting tack tests on products such as pressure-sensitive adhesive tapes.

It measures the amount of displacement of the sample after a certain period of time or the time required for the sample to completely detach, determining the tape's resistance to pull-out.

Test Principles

lThe test sample, the test plate with the adhesive sample attached, is vertically suspended on the test frame, and a weight of a specified weight is suspended at the lower end.

The displacement of the sample after a certain period of time or the time it takes for the sample to completely detach is used to characterize the adhesive sample's ability to resist pull-out.

The instrument meets multiple national and international standards: GB/T 4852, JIS Z0237, JIS Z0237

professional skills

l The test plates and weights, designed strictly according to standards, ensured the accuracy of the test data.

l The system is controlled by a microcomputer and features a PVC control panel, membrane buttons, and an LCD screen, allowing users to quickly perform experiments and view data.

l Six testing stations can perform multiple sets of tests simultaneously.

lAutomatic timing and locking functions further ensure high accuracy of test results.

Technical indicators

l Weights—1000±10g (including the weight of the loading plate)

l Test plate—60 (L) * 40 (B) * 1.2 (D) mm (same as loading plate)

l Pressure roller load: 2000±50g

l Rubber hardness: 80°±5° (Shore hardness)

l Timer—99 hours 59 minutes 59 seconds

l Workstation - 6 workstations

l Net weight - 12.5kg

l Power supply—220V 50Hz

lExternal dimensions—600 (L) * 240 (B) * 400 (H) mm

Configuration:

lAdhesion tester, pressure roller, test plate, loading plate, weights, power cord, fuse
