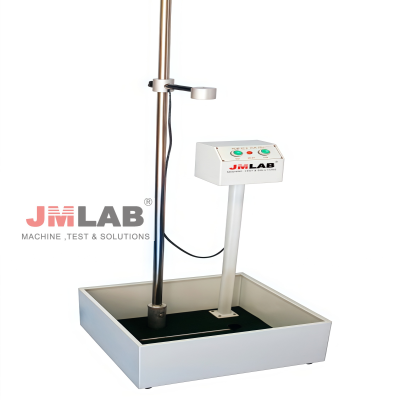

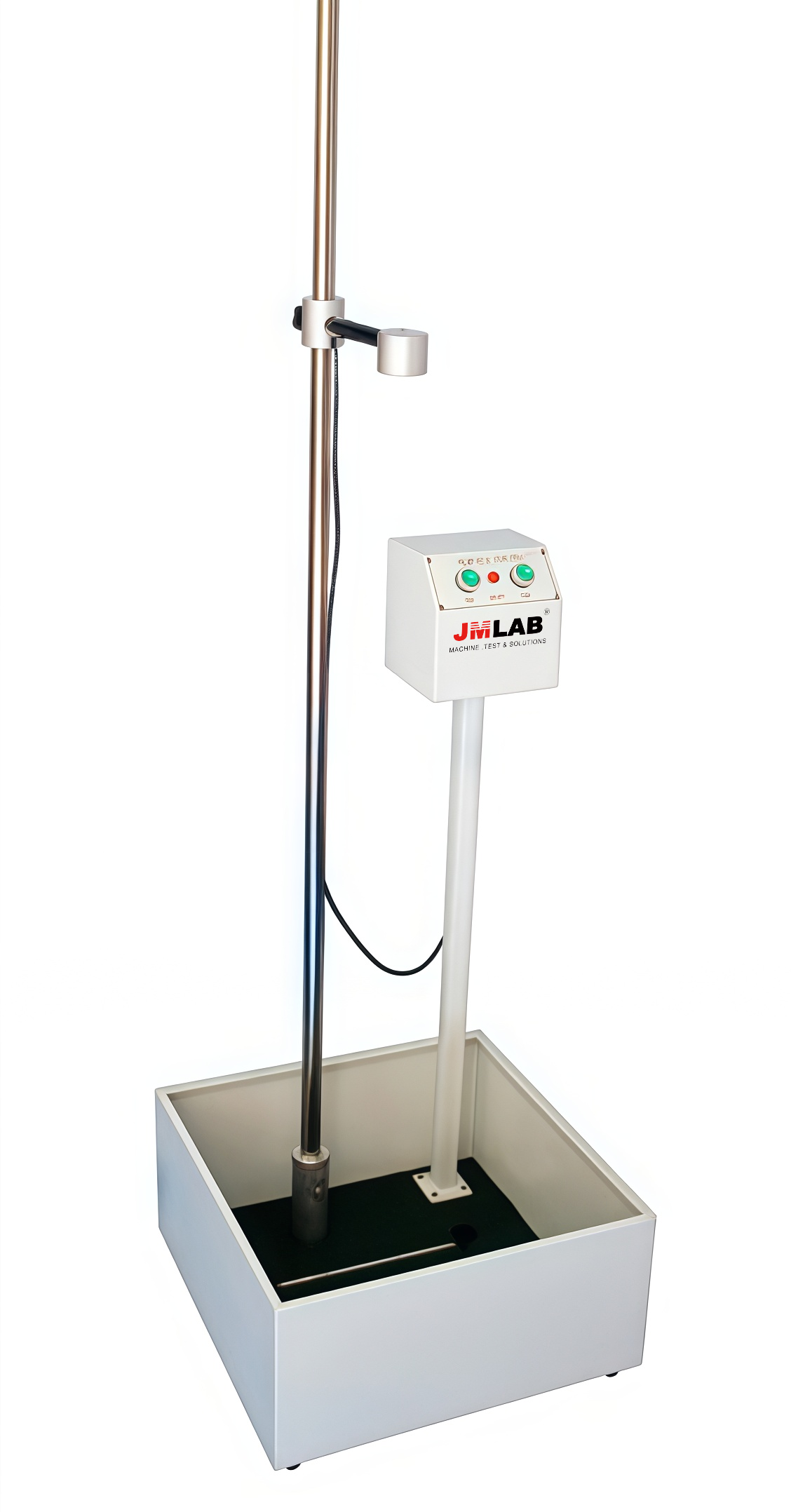

JMLQ-02 Falling Ball Impact Testing Machine

Product Introduction

This machine is designed to test finished products or components of electronics, electrical appliances, home appliances, plastics, communications, etc., for collisions encountered during installation. It assesses whether the product structure is defective or insufficient. A steel ball of a specified weight is dropped freely from a certain height to strike the test material or component to observe the degree of damage to the product.

Instrument Features

1. A large measurement range of 2000mm is sufficient to meet the measurement needs of medicine packs.

2. The highlighter's positioning function makes it easy to select points.

3. Highly flexible and adjustable to meet higher testing standards.

4. The ball drop control method adopts DC electromagnetic adsorption control.

5. The 200mm frame height prevents the ball from being lost upon landing.

6.High-strength bottom steel plate, withstands an effective impact height of 2m.

Technical parameters

1. Ball drop height: 0-2000mm adjustable

2. Ball drop control method: DC electromagnetic control

3. Steel ball weight: 112, 198, 225, 357, 533 (steel balls can be customized according to customer requirements)

4. Power supply: 220V, 50Hz, 2A

5. Machine dimensions: Approximately 40×50×200 cm

6. Machine weight: Approximately 40 kg

7. Frame height: 200mm, bottom steel plate (standard product) thickness: 13mm, effective impact height: 2 meters.
