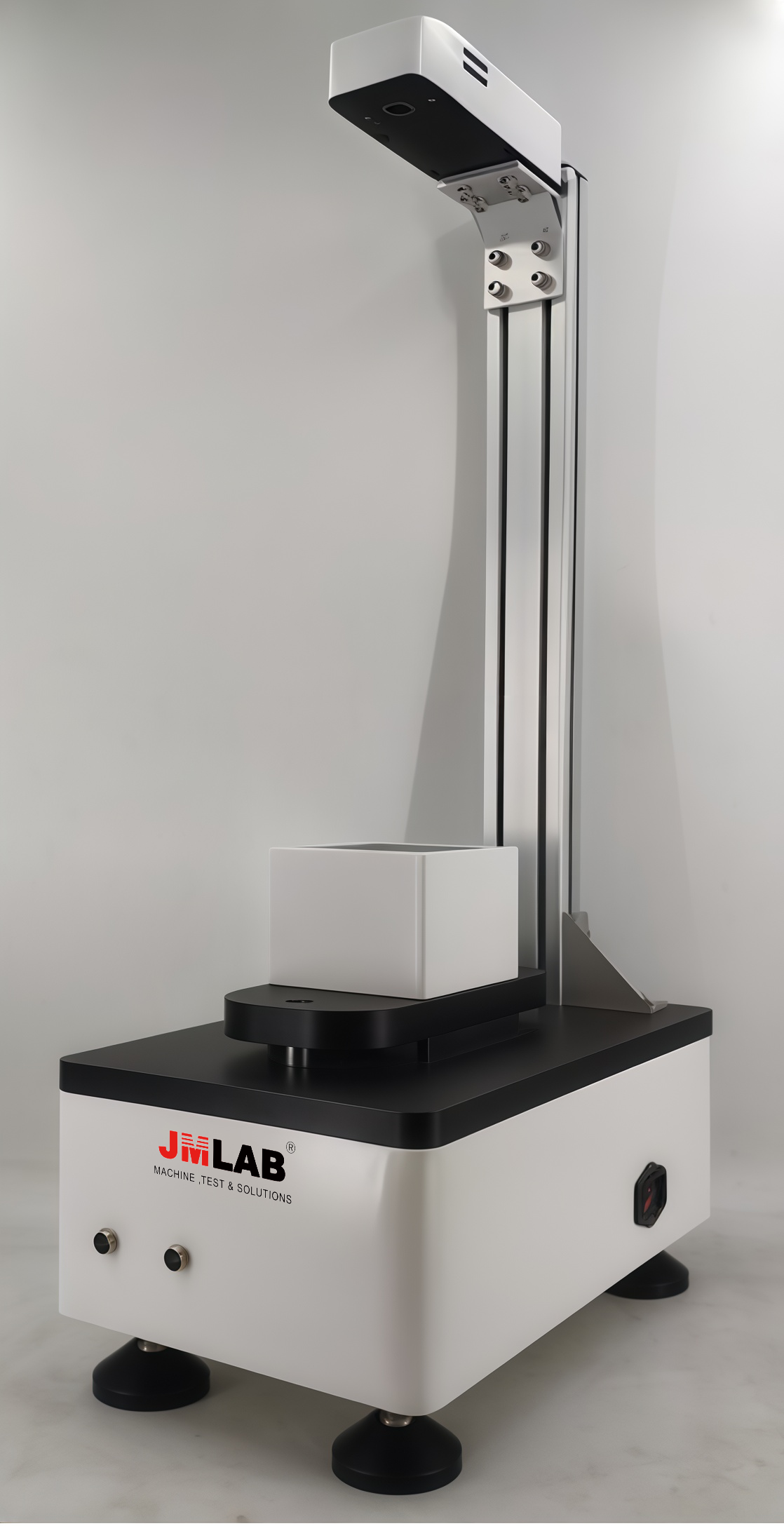

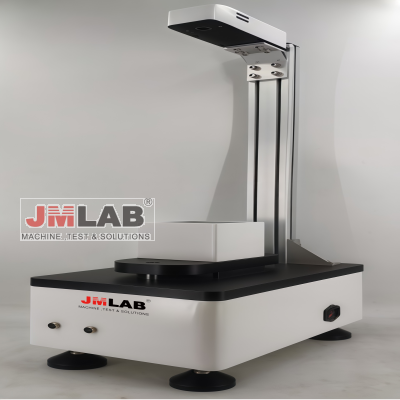

JMLQ-T3 Falling Ball Impact Testing Machine

Product Introduction

This machine is designed to test finished products or components of electronics, electrical appliances, home appliances, plastics, communications, etc., for collisions encountered during installation. It assesses whether the product structure is defective or insufficient. A steel ball of a specified weight is dropped freely from a certain height to strike the test material or component to observe the degree of damage to the product.

Instrument Features

1.A large measurement range of 2000mm is sufficient to meet the measurement needs of medicine packs.

2. The laser pointer positioning function makes point selection convenient.

3. Highly flexible and adjustable to meet higher testing standards.

4. The ball drop control method adopts DC electromagnetic adsorption control.

5. The 200mm frame height prevents the ball from being lost upon landing.

6. High-strength bottom steel plate, withstands an effective impact height of 2m.

Technical Parameters

1. Drop height (stroke): 0～1500mm adjustable (other options available upon request)

2. Drop height: Minimum indication 0.01mm

3. Ball dropping control method: DC electromagnetic control

4. Operation display: 7” touchscreen

5. Steel ball weight: 500g/200g/100g/50g/20g (steel balls can be customized according to customer requirements)

6. Height adjustment method: Automatic control

7. Power supply: 220V, 50Hz, 2A

8. Machine dimensions: 650*720*2450mm (excluding control box)

6. Machine weight: Approximately 150 kg
